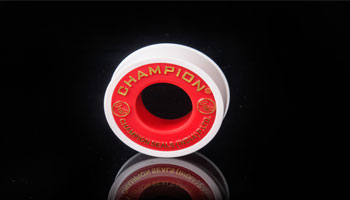

Champion Tapes- Thread Seal


"Champion" PTFE Thread Sealant Tape, due to the special nature of the thread seal will be lasting and resistant to high temperatures and corrosive chemicals.The seal will not harden or become brittle but will remain flexible enough when the seal is opened for maintenance."Champion" PTFE Thread Sealant Tape can be used for various media from corrosive chemicals to water and gas to oil, in hydraulics and pneumatics.

Instruction

Wind the tape by hand, using a constant minimal tension sufficient for the tape to take up the form of the thread. The tape should be wound in a helical fashion with a 50% overlap in the direction of the thread so that when the connection is completed the finishing end of the tape remains in position. The tape width should not exceed the length of the thread form.

Operating Parameters :

PRESSURE

up to 20 bar ( 2.0 MPA)

TEMPERATURE RANGE

-374°F to +536°F

(-190 ℃ to +280 ℃)

THREAD RANGE

1/8” to 3” NPT, BST, Metric

THREADED PARTS MATERIAL

Suitable for all metal & plastic fittings.

CHEMICAL RESISTANCE

Extreme resistance to most chemicals, corrosives, caustics, oils, solvents & gases

APPROVED FOR USE

Food handling equipment, water, gas and biological systems.

Physical Properties

Color Natural (white) non-pigmented
Purity 99.9% minimum virgin PTFE
Toxicity Non-Toxic
Shelf Life Indefinite
Density: > 0.60 g/cm3
Tensile (longitudinal) 8 N/mm2
Elongation (longitudinal) 75% min.

Fluid Resistance

Product CT-125 CT-190 CT-250
Width
(+/-0.3mm)
0.5"
12.5 mm
0.75"
19 mm
1"
25 mm
Length
(+/-0.175M)
12 M
(13 yards)
12 M
(13 yards)
12 M
(13 yards)
Density
(+/- 0.10 g/cm3)
0.6 g/cm3 0.6 g/cm3 0.6 g/cm3
Thickness
(+/-0.0075mm)
0.075 mm 0.075 mm 0.075 mm
Colour
(Spool/Case)
White/Red White/Blue White/Green
